ReactDjangoApp

This is a simple application which uses React and Django frameworks.

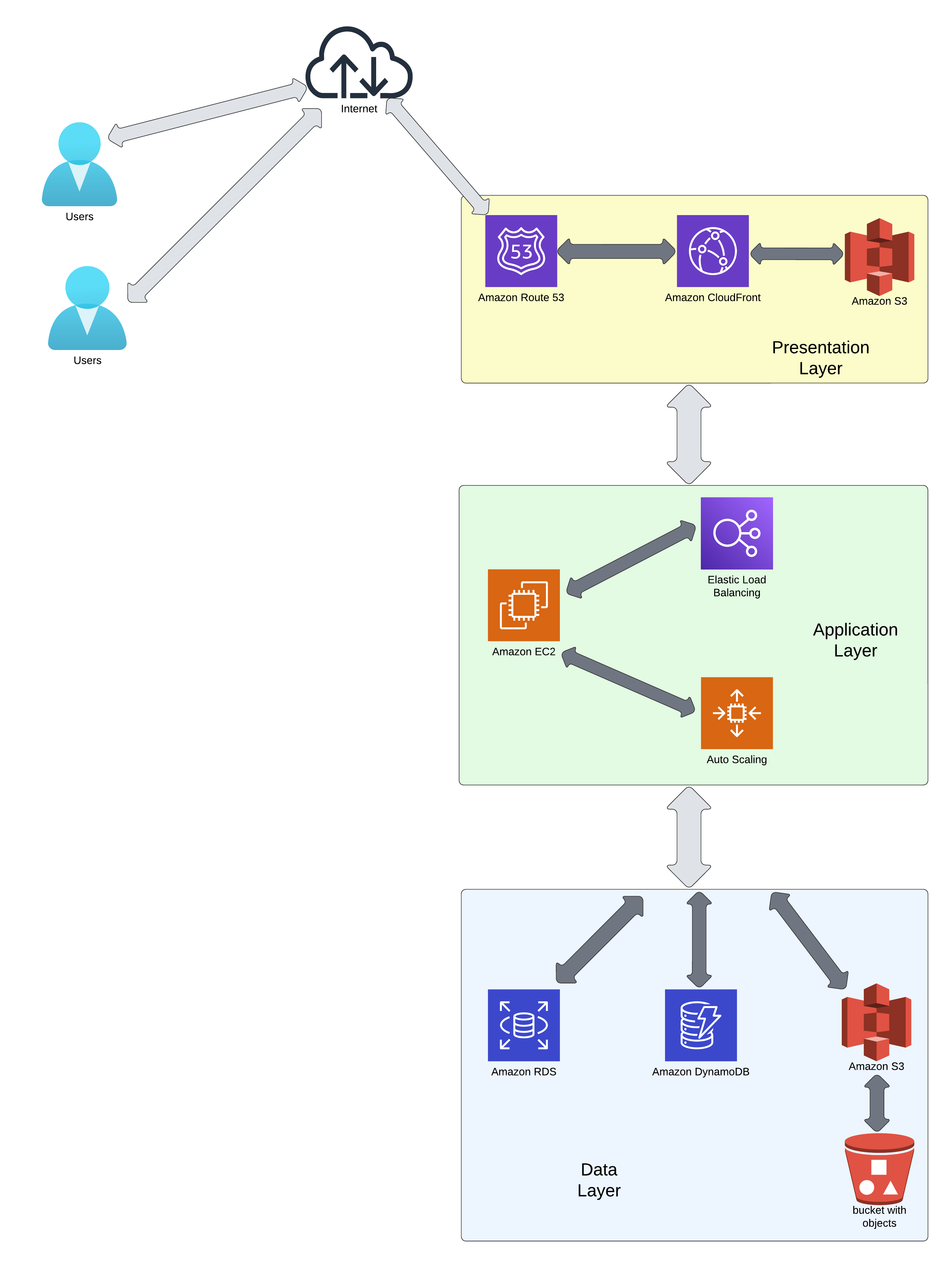

• 3-Tier AWS Architecture
• Project Report for the Website

Overview

This project is a simple web application that demonstrates the integration of a React.js frontend with a Django backend. The frontend consists of a simple web page that fetches and displays data from the backend’s API endpoints.

Table of Contents

• Features
• Technology Stack
• Project Structure
• Setup Instructions
  • Backend Setup (Django)
  • Frontend Setup (React)
• Running the Project
  • Running the Backend
  • Running the Frontend
• How It Works
• Future Enhancements
• License

Features

• React Frontend: A simple React.js application that makes API requests and displays data from the backend.
• Django Backend: A Django REST API that serves data to the React frontend via two endpoints.
• API Endpoints:
  • /api/endpoint1/: Returns a JSON response with a custom message saying Hola.
  • /api/endpoint2/: Returns a JSON response with a custom message saying Adios.

Technology Stack

• Frontend: React.js, Axios
• Backend: Django, Django REST Framework

Project Structure

myproject/
├── myproject/ # Django project folder
│ ├── settings.py # Django settings
│ ├── urls.py # Project URL configuration
│ └── ...
├── myapp/ # Django app folder
│ ├── views.py # API views
│ ├── urls.py # App URL configuration
│ └── ...
└── manage.py # Django management script

myfrontend/ # React project folder
├── src/
│ ├── components/
│ │ └── MyComponent.js # React component that makes API calls
│ ├── App.js # Main React app file
│ └── ...
└── package.json # Node.js dependencies and scripts

Setup Instructions

Backend Setup (Django)

Make sure Python is installed in your machine.

1. Clone the repository: ```bash git clone https://github.com/yourusername/react-django-simple-website.git cd react-django-simple-website/myproject

2. Create a virtual environment and install dependencies present in requirements.txt: ```bash python -m venv env_site source env_site/bin/activate # On Windows: .\env_site\Scripts\activate.ps1 pip install -r requirements.txt

3. For starting a new project: ```bash django-admin startproject projectReactDjango cd projectReactDjango python manage.py runserver

Make the changes to the code and then run the following commands.

Configuring CORS:

1. Add 'corsheaders' to INSTALLED_APPS in myproject/settings.py

      INSTALLED_APPS = [
          ...
          'corsheaders',
          ...
      ]

2. Add CorsMiddleware to MIDDLEWARE in myproject/settings.py:

      MIDDLEWARE = [
          ...
          'corsheaders.middleware.CorsMiddleware',
          'django.middleware.common.CommonMiddleware',
          ...
      ]

3. Configure CORS settings in myproject/settings.py

      CORS_ALLOWED_ORIGINS = [
          "http://localhost:3000",
          # Add any other allowed origins here
      ]

1. Apply migrations: ```bash python manage.py makemigrations python manage.py migrate

2. Start the Django development server: ```bash python manage.py runserver

Frontend Setup (React)

Make sure Node.js is installed in your machine.

1. Make sure that node.js is properly installed or not in command prompt: ```bash node -v

2. For creating react app globally and check whether properly installed: ```bash npm install -g create-react-app create-react-app –version

3. Navigate to the frontend directory for creating app: ```bash npx create-react-app myfrontend cd ../myfrontend

4. Install dependencies present in package.json: ```bash npm install

Make the changes to the code and then run the following commands.

1. Start the React development server: ```bash npm start

Running the Project

Running the Backend

1. Ensure that the Django backend server is running: ```bash cd myproject python manage.py runserver

2. The backend server should be accessible at http://localhost:8000.

Running the Frontend

1. Open a new terminal and start the React frontend server: ```bash cd myfrontend npm start

2. The frontend server should be accessible at http://localhost:3000.

How it Works

• API Requests: When the React app loads, it sends HTTP GET requests to the Django backend.
• Data Fetching: The Django backend processes these requests and sends back JSON responses.
• Data Display: The React frontend captures this data and displays it on the webpage.

Future Enhancements

• Implementing a more sophisticated UI with CSS or a UI library like Bootstrap.
• Adding a better error handling for API requests on the frontend.

License

This project is licensed under the MIT License. See the LICENSE file for details.
